Products
LAB SCALE EQUIPMENT - Wet COATING
ESI offers many wet coating lab machines
KATOP Laboratory Transfer Coater & Extrusion Coating Machine
Features compact structure and various coating methods, commonly used in lab coating research
Specifications:
Coating Method - Transfer Coating
Coating Width - MAX:380mm
Coating Speed - MAX:3m/min
Weight Accuracy - ±1.5%
Coating Dimension Accuracy - ≤±0.5mm
Coating Surface Density - 5-30mg/cm²
Coating Method - Slot Die Continuous/Intermittent Extrusion Coating
Coating Width - MAX:380mm
Coating Speed - MAX:3m/min
Coating Dimension Accuracy - ≤±0.3mm
Coating Weight Accuracy - ±1.0%
KATOP Multi-Functional Laboratory Coater
• Features compact structure and various coating methods, commonly used in lab coating research
• Saving slurry, simple operation and high safety
Specifications:
Coating Method - MAX:380mm
Coating idth - MAX:3m/min
Coating Speed - ±1.5%
Coating Weight Accuracy - ≤±0.5mm
Coating Surface Density - 5-30mg/cm²
Reel Diameter/Weight - MAX:Φ250mm/150kg
LAB Scale equipment - Dry Coating
ESI is proud to work with KATOP on cutting edge coating technology
.png/:/cr=t:5.56%25,l:0%25,w:100%25,h:88.89%25/rs=w:360,h:180,cg:true)

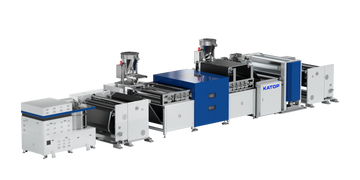

KATOP Dry Electrode Total Solution
• Integrates functions such as feeding, film forming, single-side lamination, rewinding and unwinding.
• Uniform mixing and material fibrosis of binder through high-speed mixing equipment, to achieve continuous film forming, thinning, and lamination.
Specifications:
Mechanical Speed - Max. 30m/min
Operation Speed - Max. 15m/min
Rolling Thickness Accuracy - ±2μm
Film Width - 400mm
Roller Width - 500mm
Pressure - 10-50T

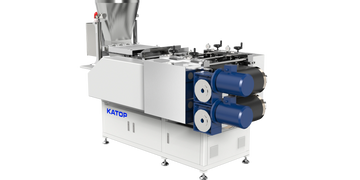

KATOP Roll-to-Roll Calendaring Machine
• Each roller is driven independently with separate temperature controls.
• Through differential transfer, granules can be input evenly for continuous film forming, thinning or lamination.
Specifications:
Mechanical Operation Speed - Max. 15 m/min
Production Speed - Max. 5 m/min
Roller Width - 400 mm
Effective Film Width - 300 mm
Heating Temperature - Normal temperature~200°C
Film Thickness, s - ≥65 μm
Calendaring Thickness Accuracy - ±2 μm
Roller Heating Method - Heat Conduction Oil
KATOP Double Steel Belt Calendaring Machine
• Continuous pressing by heating rollers
• Enables continuous film forming of materials under different states.
Specifications:
Mechanical Operation Speed - Max. 15 m/min
Production Speed - Max. 5 m/min
Steel Belt Width - 400 mm
Effective Film Width - 300 mm
Heating Temperature - Normal temperature~200°C
Film Thickness - ≥250 μm
Calendaring Thickness Accuracy - ±5 μm
Roller Heating Method - Heat Conduction Oil
KATOP ZD Mixer
• Used for mixing cathode and anode slurry of LIB, cathode and anode electrode slurry of sodium battery, and dry electrode powder.
• Main structure consists of a rotary drum, mixing unit, wall scrapping unit, etc.
Specifications:
Effective Volume - 1L
Dispersion Disk Linear Velocity - Max. 35 m/s
Linear Velocity of Mixing Drum - Max. 1 m/s
Clamp Function - Cooling/Mixing
Equipment Applicability - Mixing and Dispersion Experiment of Powder/Slurry
KATOP ZD Mixer
• Used for mixing cathode and anode slurry of LIB, cathode and anode electrode slurry of sodium battery, and dry electrode powder.
• The main structure consists of a rotary drum, mixing unit, wall scrapping unit, etc.
Specifications:
Effective Volume - 10L
Dispersion Disk Linear Velocity - Max. 44 m/s
Linear Velocity of Mixing Drum - Max. 1.5 m/s
Clamp Function - Cooling/Mixing
Equipment Applicability - Mixing and Dispersion Experiment of Powder/Slurry
KATOP ZD Mixer
• Used for mixing cathode and anode slurry of LIB, cathode and anode electrode slurry of sodium battery, and dry electrode powder.
• The main structure consists of a rotary drum, mixing unit, wall scrapping unit, etc.
Specifications:
Effective Volume - 35L
Dispersion Disk Linear Velocity - Max. 40 m/s
Linear Velocity of Mixing Drum - Max. 1.5 m/s
Clamp Function - Cooling/Mixing
Equipment Applicability - Mixing and Dispersion Experiment of Powder/Slurry
